NEMA subtraction images from a Siemens Body 18 coil using the long cylinder phantom

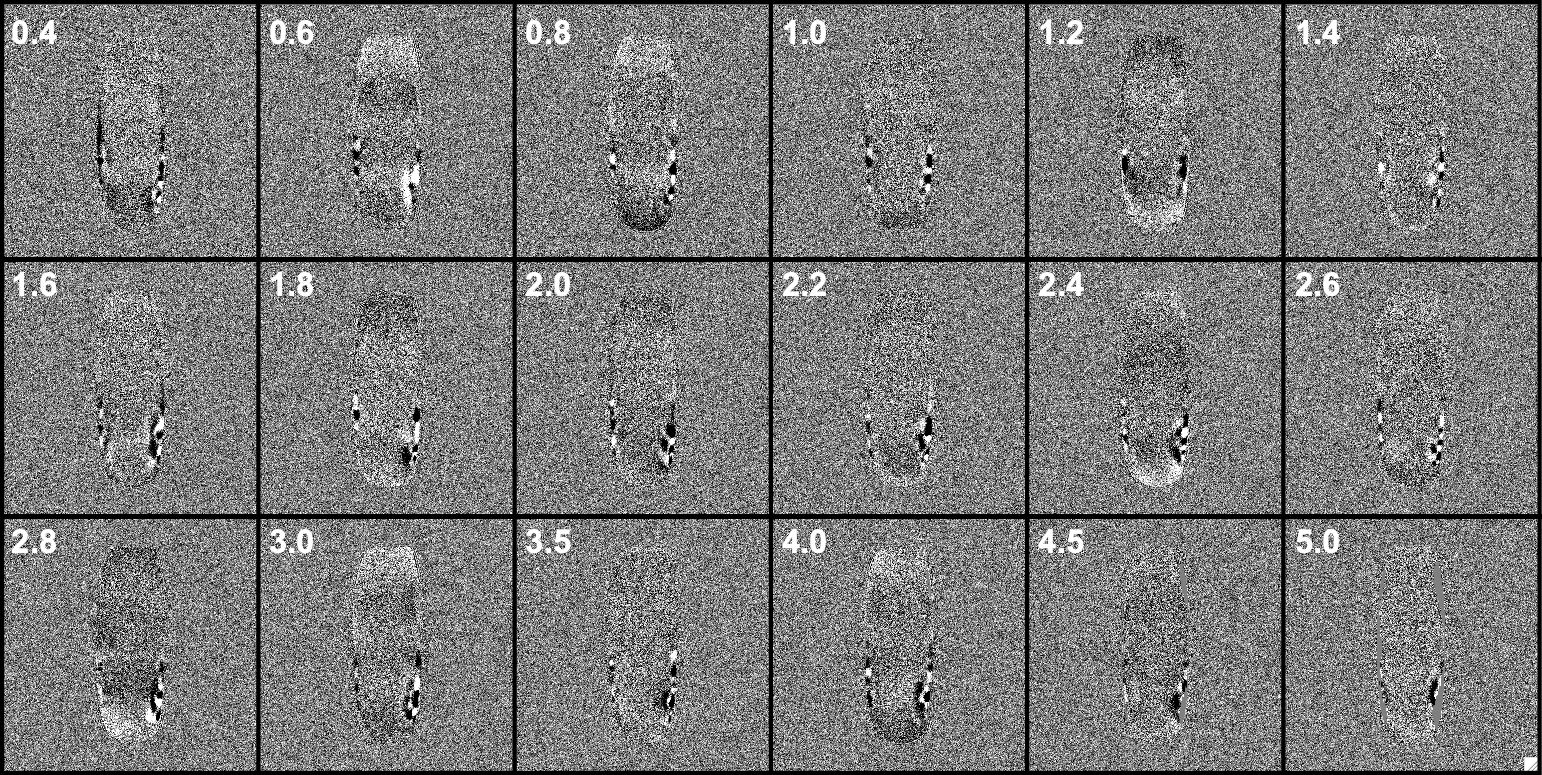

Fig 4 — NEMA subtraction images from a Siemens Body 18 coil using the long cylinder phantom. The white text corresponds to the FFT scaling factor used.
NEMA subtraction images from a GE QD Head coil using the ACR phantom

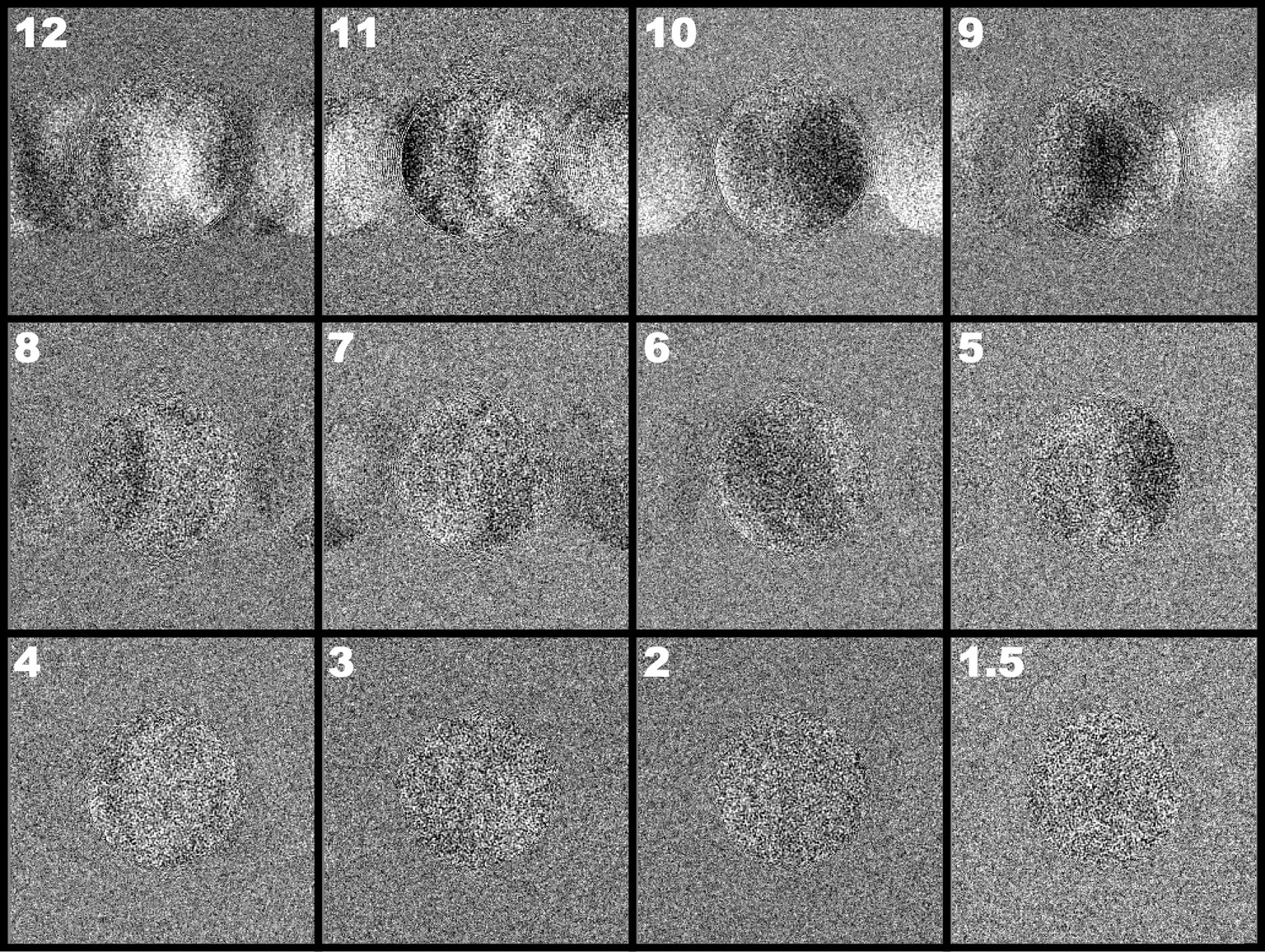

Fig 5 — NEMA subtraction images from a GE QD Head coil using the ACR phantom. The white text corresponds to the slice thickness used.
NEMA subtraction images from a GE HNU coil using an Acrylamide gel cylindrical phantom

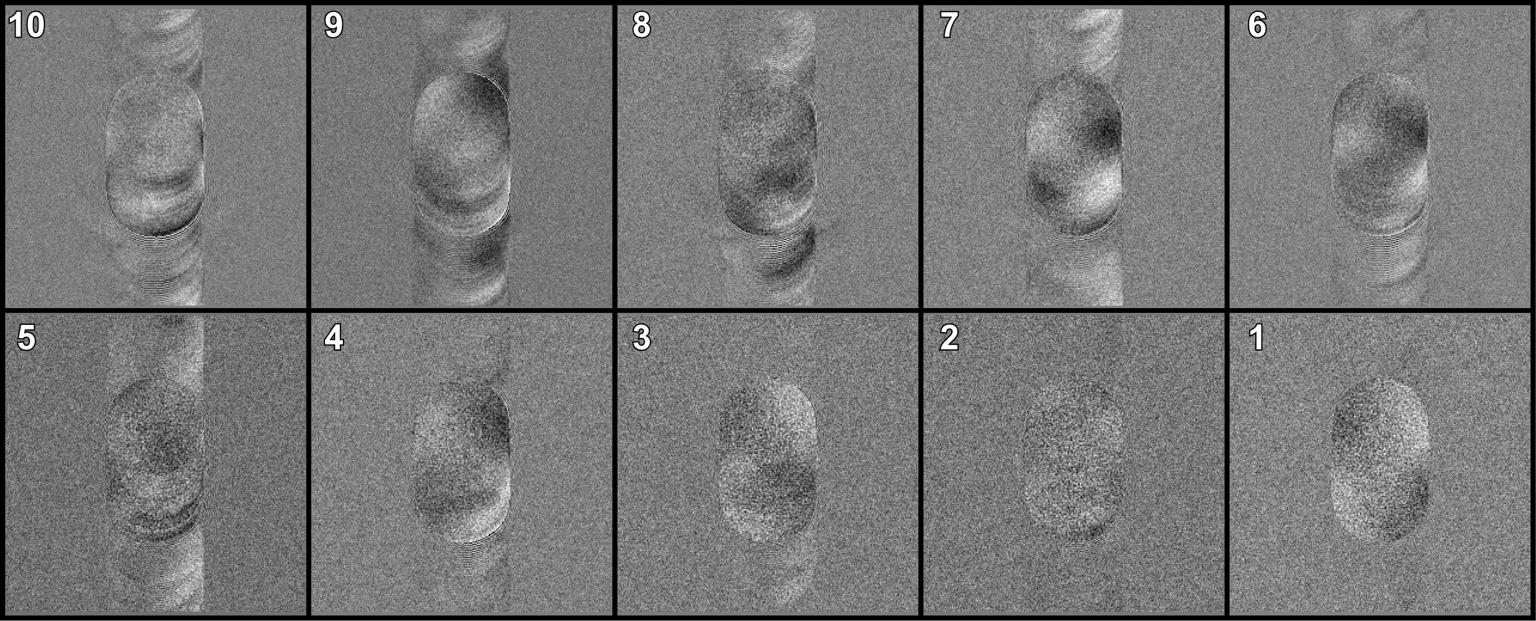

Fig 6 — NEMA subtraction images from a GE HNU coil using a cylindrical phantom filled with Acrylamide gel to eliminate motion or vibration related swirling. It didn’t help! Again, the white text corresponds to the slice thickness used.
